MediaMaster VS4+

The VS4+ is a rugged 19″ rackmount media server with seamless MediaMaster Pro integration, supporting up to 4×4K or 16×HD outputs. Compact, reliable, and versatile, it’s perfect for broadcast, streaming, touring, and rental applications.

Overview:

  • 4 x 4K Video Output
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support

VS4+ is a feature-packed, intuitive and fun to use visual tool as well as a cost-efficient 19 inch rack mounting solution for all scenarios requiring full control over a range of media inputs.

Running seamlessly with the latest MediaMaster Pro software, VS4+ interfaces and works harmoniously with any lighting console, and is targeted at high end television studios, streaming facilities and broadcast scenarios. With this exceptionally rugged engineering it is also ideal for production, touring and rental markets.

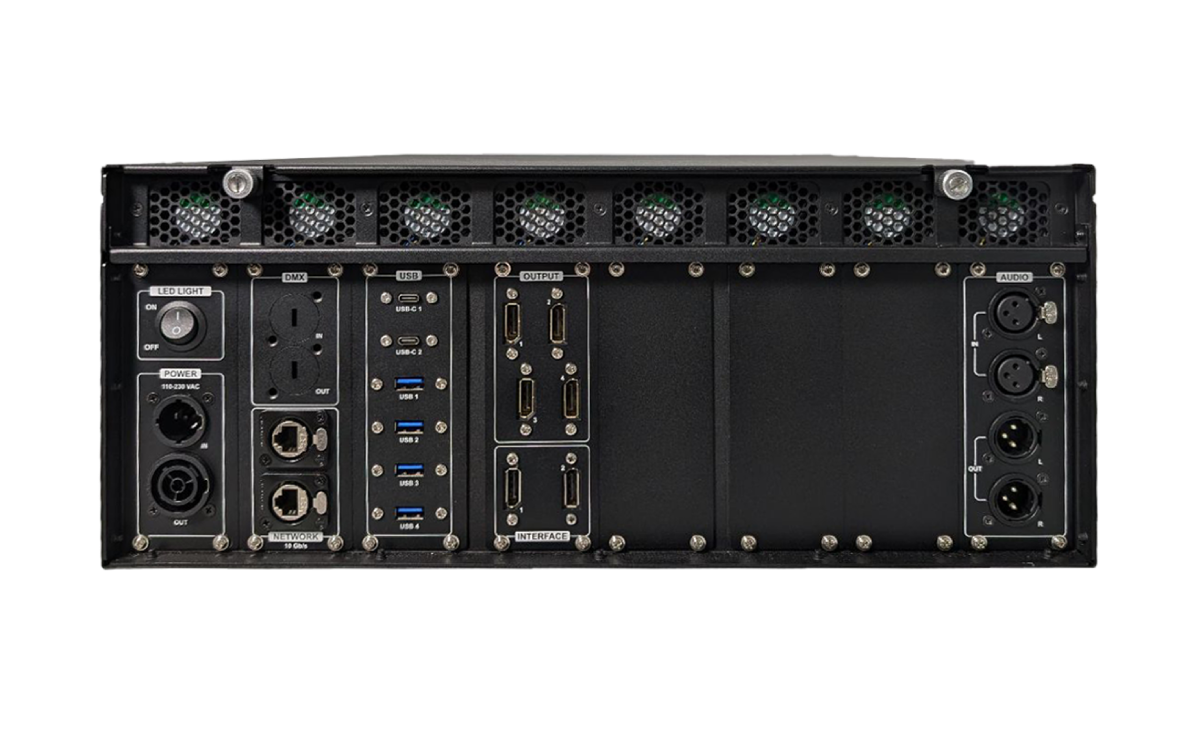

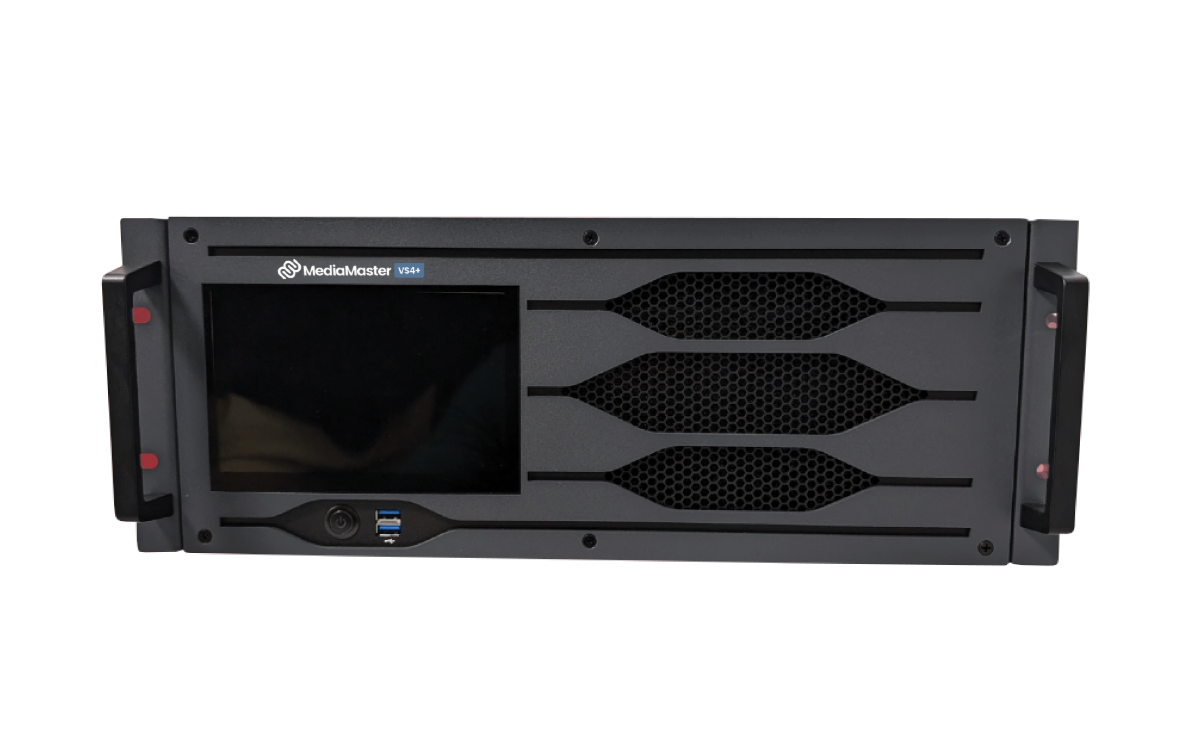

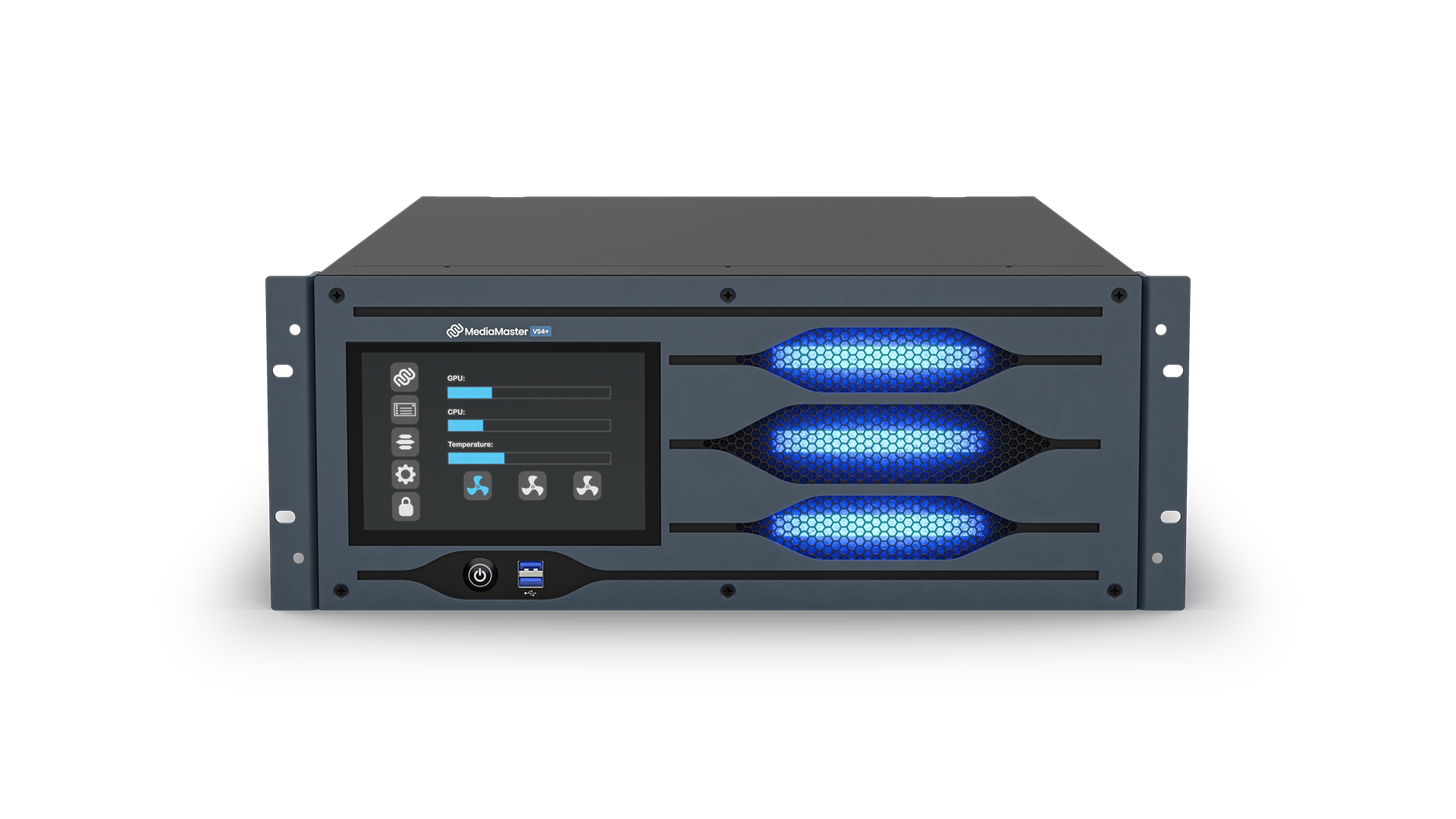

Two interface screens enable monitoring, there is also USB connectivity on the front and a Neutrik PowerCON True1 for power.

With up to 4x4K or 16 x HD screens running from one VS4+, devices can also be networked together for controlling even more screens. The screens can be remotely EDID locked, while the front panel LEDs can be programmed to display different colours to indicate status or assist with fault finding.

Caractéristiques

Hardware Specifications:

  • Processor: AMD Ryzen Threadripper PRO 5955WX
  • Threads (Cores): 32(16)
  • RAM: 32GB (4x 8GB) Crucial
  • RAM Type: DDR4 3200 MHz SODIMM
  • Graphics Card: nVIDIA RTX A4000 16GB / NVIDIA T400 4GB
  • Power Input: powerCON TRUE1 110 to 240 VAC
  • Max Power Consumption (mains): TBC
  • System Drive: SSD 1 TB
  • Storage Drive: SSD 1 TB
  • System Restore Drive: USB 128 GB
  • Interface Output: 2x DisplayPort – 4K
  • Media Output: 4x DisplayPort – 4K
  • Ethernet Output: 2x 10Gb/s (cat6A)
  • Front USBs: 2 – USB 3.0 A Type
  • Rear USBs: 4 x USB 3.0 A Type , 2 x USB-C
  • Sync: NVIDIA PNY Quadro Sync 2
  • Audio: 1- Audio/SMPTE/LTC/BPM
  • DMX In/Out: Optional
  • Genlock: Optional
  • Input: 2x/4x/8x SDI (optional) / 2x/4x/8x HDMI (optional)

Software Specifications:

  • Operating System: Windows 11 Pro
  • MediaMaster Software: Pro
  • Playback Layers: 48
  • Surfaces: 250
  • Outputs: 4
  • Presets: 4096
  • LED Mapper: Yes
  • King Net Mapper: Yes
  • Video Mapper: Yes
  • Soft Edge / Geometric Correction: Yes
  • NDI®5 : Yes
  • CITP/MSEX: Yes
  • GDTF Personality Export: Yes
  • Factory System Restore: Yes

Control:

  • Art-Net: Yes
  • sACN: Yes
  • Stand Alone Keyboard Control: Yes
  • DMX Control: Yes
  • Front Panel Control: Yes

Boxed Weights and Dimensions:

  • Width: 600mm (23.62 inches)
  • Depth: 810mm (31.88 inches)
  • Height: 360mm (14.17 inches)
  • Weight: 20.3 kg (44.75 lb)

Unit Weights and Dimensions:

  • Width: 425mm (16.73 inches)
  • Depth: 625mm (24.60 inches)
  • Height: 177mm (6.96 inches) – 4U High
  • Weight: 16 kg (35.27 lb)
